Custom H-type photoelectric electrochemical cell Quartz 50*50mm For 40*40mm WE

SKU: CPQ246D1

Special Price $950.95

Regular Price: $950.95

SIZE:
Quotation

Description

• Fits all major brands of potentiostats
• This is a customized item, invalid for refund or exchange.
• Size: Quartz 50*50mm for 40*40mm WE

The research of electrochemistry involves the mutual conversion between light energy,electrical energy and chemical energy.Through convenient control and detection of voltage and current signals,it can quickly reflect the conversion process of the three.Therefore,more and more scientific researchers have invested in this direction to study the properties of materials under the compound photo electric energy field.

Our Recommendations

Product Details

The photoelectrochemical cell is suitable for supporting equipment with horizontal and horizontal illumination of the light source. The three electrodes are on the upper part,and the working electrode should be as close as possible to the side of the light window.A vertical electrode clamp or a horizontal electrode clamp can be used to clamp the material for testing,so that the optical instrument can detect the working electrode from the side quartz light window.

The sealed photoelectrochemical cell is an optical reactor that is widely used.

characteristic:

1.The main body of the electrolytic cell is customized with nylon material, equipped with JGS2 quartz plate.The size of the quartz plate is 60*60*3mm. The spectral application range of JGS2 optical quartz glass is 220-2500nm.

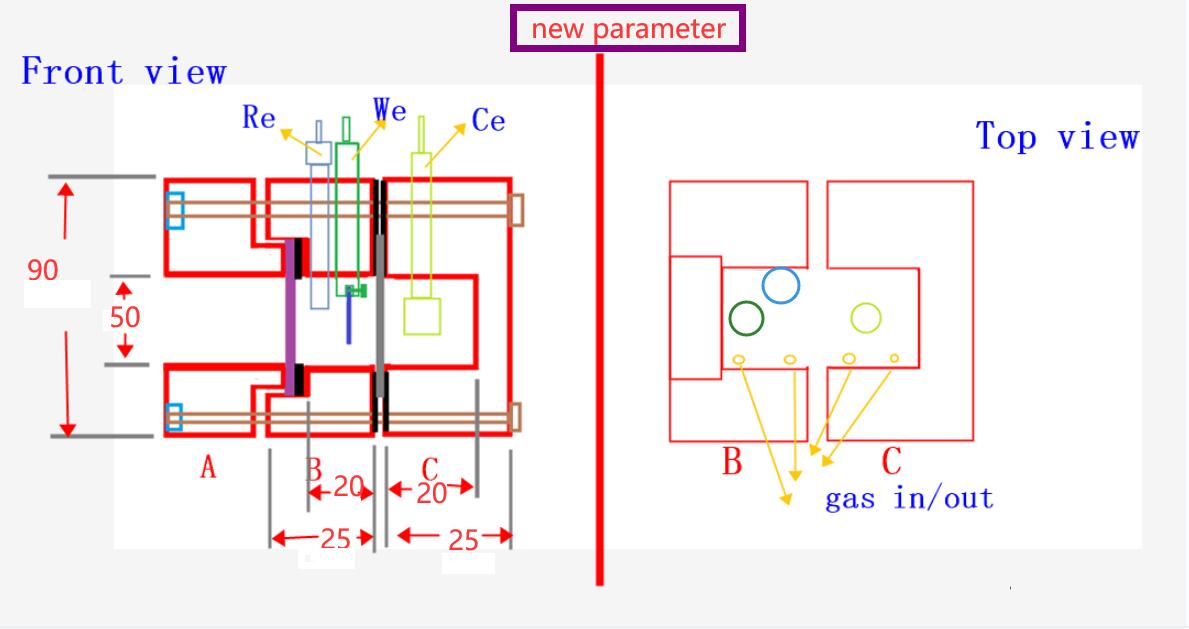

2.The outer size of the electrochemical cell is 90*90mm, which is assembled into a whole by four stainless steel screws.

3.The cathode chamber and anode chamber of the electrochemical cell are independent, and an ion membrane needs to be placed in the middle to separate it. The ion membrane size is recommended to be 60*60mm.

4.The reference electrode can be purchased separately: silver chloride electrode, silver ion electrode, calomel electrode, mercurous sulfate electrode, mercury oxide electrode, etc..

5.The counter electrode can be purchased separately:platinum wire electrode,platinum sheet electrode,graphite electrode,etc.

6.The working electrode can be purchased separately:PEEK replaceable electrode holder.

7.The effective diameter of the light window is 50*50mm.

8.Volume: 40ml

NOTICE：

1.This is a customized item, we can't offer any refund or exchange. If you have any questions before purchasing, please feel free to communicate with us.

2.Three electrodes (working electrode, counter electrode, reference electrode) need to be purchased separately.

3.Be sure to keep the material surface of the working electrode facing the quartz plate in advance, so that the light can reach the material supplier.

Product Includes:
3 * Nylon plate chamber
2 * Quartz window sheet
8 * Stainless steel screw
6 * electrode hole sealing screw
8 * gas hole sealing screw
1 * PTFE tube φ3mm
6 * Light window fluorine rubber gasket
10 * Ion membrane sealing fluorine rubber gasket
20 * fluorine rubber O-ring

References:

NEED HELP? CONTACT US

Call Toll-Free +1 (800) 972-7086

Email Us:

    Shipping
  • Standard Shipping: 5-7 Business days
  • DHL/Fedex Express Shipping: 2-5 Business days

PAYMENT

PRODUCT SHOW

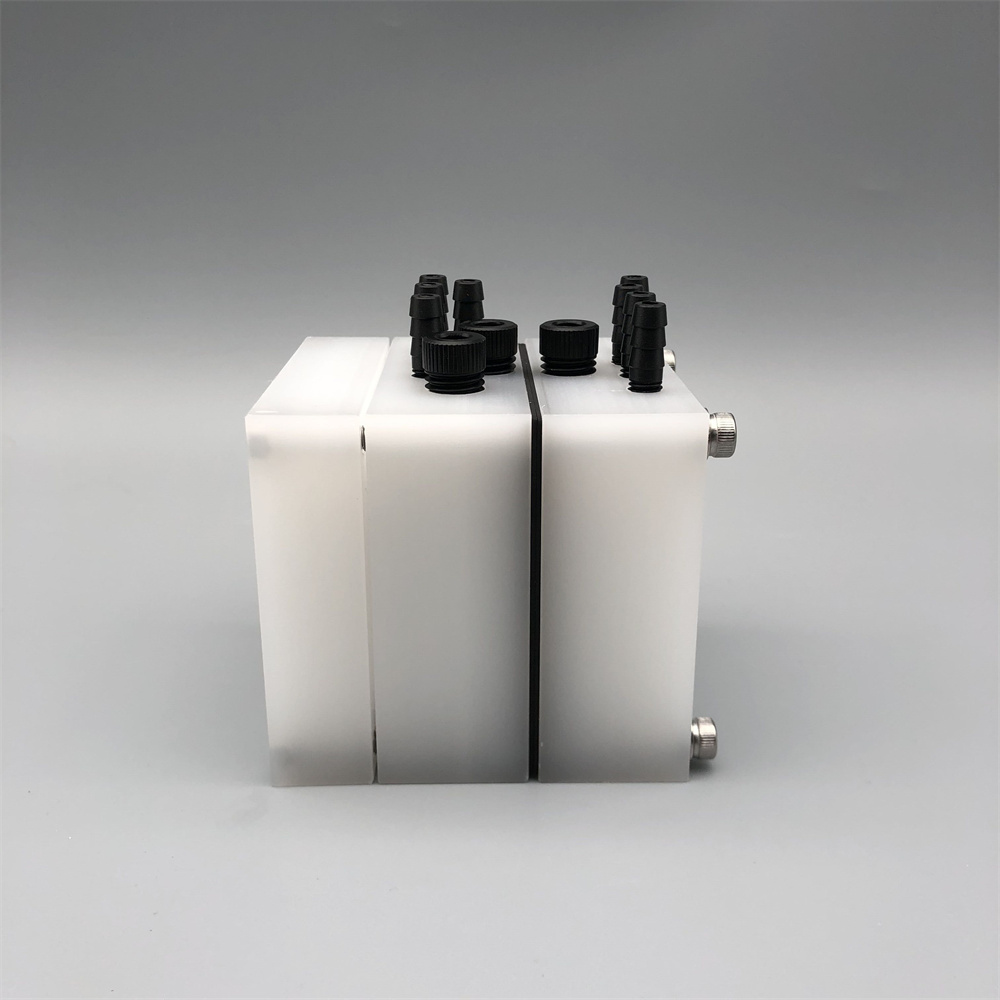

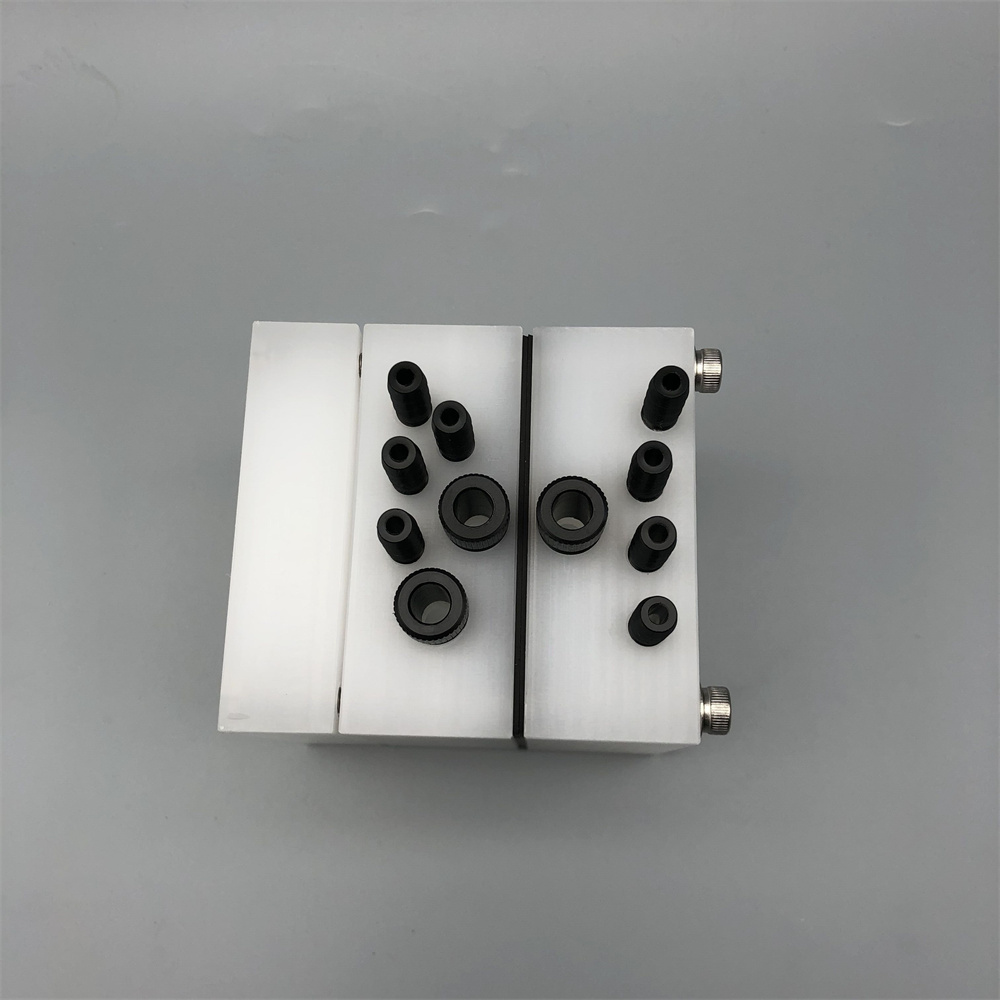

Here are some photos, you can find the details from them, if you need more information, you can talk with us, we have many experts in dekresearch, and we are very happy to give you some support in your items!






We devotes itself to providing laboratory instrumentation that enables simultaneous in-situ measurements of a number of signals (electrochemical, optical, thermal and other) on thin film and membrane materials. we have already gained so much experience in the field of electrochemical trading and our final goal is to offer our customers various kinds of laboratory instrumentation and at best price. We are gradually becoming one of the top instrumentation online shop throughout the world and we do hope we could make you outstanding by providing the real good stuff you want. Enjoy your shopping with us and have a nice day.

  • Write The First Review Now
    1. How do you rate this product?*
    2. Quality
    3. Value
    4. Price
    5. Support
    6. Overall
    Nickname* Summary of your Review*
    Review*
page: | more


if you need customization help, pls contact us via: here

PRODUCT RELATED

Q.
How to choose ordinary electrochemical cell and sealed electrochemical cell?
A.
Regardless of the user's tightness requirements for the actual test, the sealed electrochemical cell is the first choice. The sealed electrolytic cell is equipped with hollow sealing screws and fluorine rubber O-rings to install and seal the entire device, and then pass inert gas into the cell body to drive out the excess gas inside the cell body to realize the test of the system in an inert environment. If there is no requirement for tightness, no ventilation operation is required. However, if you choose an ordinary electrochemical cell, the related operations of the sealed electrolytic cell cannot be realized.
Q.
What volume of electrochemical cell is suitable to choose?
A.
The volume of the electrolytic cell should be selected moderately. If the volume is too large, the amount of solution will be too much, which is unnecessary. During electrochemical measurement, the electrode surface undergoes oxidation and reduction reactions, and some substances in the solution are reduced by participating in the electrode reaction. At the same time, some reaction products will dissolve into the solution. If the volume of the electrolytic cell is too small, the solution concentration will change significantly during the long-term steady-state measurement, which will eventually affect the experimental results. In most cases, the volume of 50ml and 100ml are more choices.
Q.
How to choose a working electrode?
A.
Common working electrodes include disk electrodes and replaceable electrode holders. The disk electrode is suitable as the base of the modified material, and it is modified to the base area of the disk electrode by mixing a membrane solution or the like with a powdered material. And if the material being studied is a sheet-like structure or the material can be modified to suitable materials such as conductive glass, carbon paper, carbon cloth, etc., it is more practical to choose a replaceable electrode clip.
Q.
How to choose a counter electrode?
A.
One of the important parameters of the counter electrode is its surface area. The counter electrode must have a large enough area to support the current conduction generated on the working electrode. Generally, the area of the counter electrode is 3-5 times the area of the working electrode. When choosing a disk electrode as the working electrode, platinum wire electrode is a good choice. When choosing sheet materials as working electrodes, platinum wire ring electrodes and platinum sheet electrodes are good choices.
Q.
How to choose a reference electrode?
A.
Generally speaking, calomel electrode or Ag/AgCl reference electrode is used in neutral system. Since the potential of calomel electrode changes greatly with temperature, when the temperature exceeds 70 degrees, it needs to be used with a salt bridge or replaced Use Ag/AgCl reference electrode. Hg2SO4 reference electrodes are generally suitable for sulfuric acid or sulfate systems. Hg/HgO reference electrodes are generally suitable for alkaline electrolyte solutions, of which the strong alkali system also needs to be used with a salt bridge, and the filling liquid in the salt bridge is consistent with the filling liquid of the reference electrode. The non-aqueous organic system needs to use a Ag/Ag+ reference electrode. When using a non-aqueous Ag/Ag+ reference electrode, the user needs to prepare a solution containing supporting electrolyte and silver ions (usually 10mM) and inject it into the reference electrode chamber. Due to shipping safety considerations, all reference electrodes are not filled with solution. Before use, the user needs to prepare an internal solution to fill it into the electrode.
